产品详细首页 > 硅橡胶 > 低VOC低挥发固/液体硅胶 > 瓦克液体硅橡胶Wacker LR3038系列LP3038-40/50
- 名称：瓦克液体硅橡胶Wacker LR3038系列LP3038-40/50
- 型号：LR3038系列LP3038-40/50
- 规格：20公斤/箱
- 说明：LR3038系列LP3038-40/50液体硅橡胶高柔韧性热稳定性优异
详细说明
德国瓦克高柔韧性 热稳定性优异液体硅橡胶 LR3038系列40和50度
联系我们可以索取免费样品，并提供技术咨询

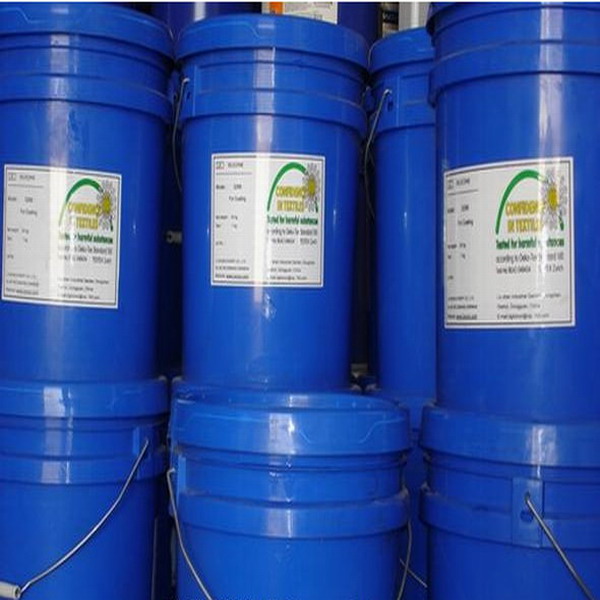

包装：20kg/桶，200公斤/桶
Characteristics
Liquid silicone rubbers of the ELASTOSIL® LR 3038 series are paste-like, non-yellowing and easily pigmentable two-component compounds with short curing times. Their vulcanizates are noted for their high transparency and excellent mechanical properties. This series is specially desinged for the Baby Care application field !
Application
These grades are particularly suitable for the economi-cal production of large series of injection molded arti-cles. Parts made from ELASTOSIL® LR 3038 can be used for technical and pharmaceutical applications. These articles are also suitable for use in conjunction with foodstuffs.
For further information, please refer to our brochure "The Grades and Properties of ELASTOSIL® LR Liquid Silicone Rubber".
Postcured parts can be used for applications in the pharmaceutical and food industries and comply with the recommendations “XV. Silicone” of the BfR and FDA § 177.2600.
Processing
The A and B components are delivered ready to use in 20 and 200 litre drums. With standard metering equip-ment, they can be pumped directly from the original containers into the injection molding machine and mixed by a static mixer. The mixing ratio is 1 : 1. At room temperature, mixtures of A and B components have a pot life of at least three days.
The vulcanization (t90 value) is 20 to 50 % shorter than of products in the ELASTOSIL® LR 3003 series. This consequently leads to a decrease in cycle times and thus to cost savings, depending on the injection-moulded articles.
For detailed information, refer to our brochure "Proc-essing ELASTOSIL® LR Liquid Silicone Rubber".
Storage
ELASTOSIL® LR 3038 should be stored between
0 °C and 30 °C in the tightly closed original container. The 'Best use before end' date of each batch appears on the product label.
Storage beyond the date specified on the label does not necessarily mean that the product is no longer usable. In this case however, the properties required for the intended use must be checked for quality as-surance reasons.
Safety information
Detailed safety information is contained in each mate-rial data safety sheet, which can be obtained from our sales offices.
|
|
Product data |
|
|
|
|
|
|
Property |
Test method |
Unit |
|
ELASTOSIL® LR 3038 |
|
|
Hardness Shore A |
DIN 53 505 |
|
40 |
50 |
|
|
|
|
|
|
|
|
|
Appearance |
|
|
Transparent |
Transparent |
|
|
|
|
|
|
|
|
|
Specific gravity |
DIN EN ISO 1183-1 A |
[g/cm³] |
1.11 |
1.12 |
|
|
|
|
|
|
|
|
|
Viscosity (shear rate 0.9 s-1) |
DIN 53 019 |
[mPa s] |
950,000 |
1,100,000 |
|
|
Tensile strength |
DIN 53 504 S 1 |
[N/mm²] |
9.0 |
9.0 |
|
|
|
|
|
|
|
|
|
Elongation at break |
DIN 53 504 S 1 |
[%] |
550 |
415 |
|
|
|
|
|
|
|
|
|
Tear resistance |
ASTM D 624 B |
[N/mm] |
35 |
45.0 |
|
|
|
|
|
|
|
|
|
Rebound resilience |
DIN 53 512 |
[%] |
60 |
60 |
|
|
|
|
|
|
|
|
|
Compression set |
DIN ISO 815-B |
[%] |
25 |
25 |
|
|
|
(22 h / 175 °C) |
|
|
|
Cure conditions: 5 min / 165 °C in press; postcuring for 4 h / 200 °C in ventilated air
|
Product data |
|
|
|
|
Property |
Test method |
Unit |
ELASTOSIL® LR 3038 series |
|
Dielectric strength |
DIN IEC 243-2 |
[kV/mm] |
23 |
|
|
(1-mm-sheet) |
|
|
|
|
|
|
|
|
Volume resistivity |
DIN IEC 93 |
[? cm] |
5 x 1015 |
|
Dielectric constant (50 Hz) |
DIN VDE 0303 |
[εr] |
3.1 |
|
|
|
|
|
|
Dissipation factor (50 Hz) |
DIN VDE 0303 |
[tan ] |
30 x 10-4 |
|
Tracking resistance |
DIN 53 480 |
|
KA 3 c |
